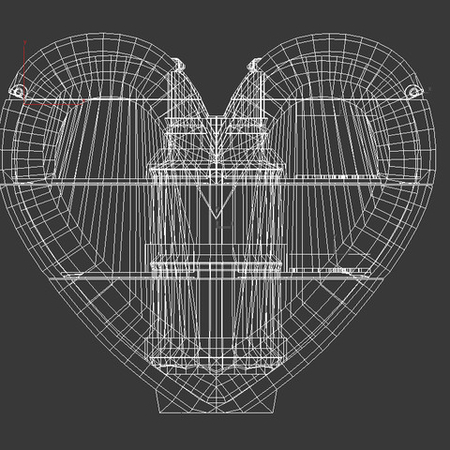

Heart tea lamp 3D for print
3367 Views 2 Likes 3 Downloads Download the piece here from 3dforprint
Video of prototype is here: https://www.youtube.com/watch?v=DwIp1mJAwqk
You'll need a tea lamp that is 22mm or less in height, 38m...m in diameter.
Designed using Fusion 360, sliced using Cura 2.3.1, and printed in PLA on an Ultimaker 3 Extended.
Printer:Ultimaker 3
Supports:No
Resolution:.1mm
Infill:See Notes.
Notes:I printed "Base.stl" at 50% infill using Red PLA....
I printed "Heart.stl" at 100% infill with a brim using Transparent PLA. Printing at less than 100% is fine, you'll just see the infill pattern.
Post-Printing
Prior to assembly, test fit and trim, file, sand, etc. all parts as necessary. Depending on the colors you chose and your printer settings, more or less trimming, filing and/or sanding may be required.
1) Remove the center support tower from inside "Heart.stl" by snapping it off.
2) Remove the "flame" diffusor from the tea lamp, then press it into "Base.stl".
3) Press "Heart.stl" into "Base.stl".
Hope your Valentine likes it as much as mine!
Remixed From
Heart Light by CudaEngineering
